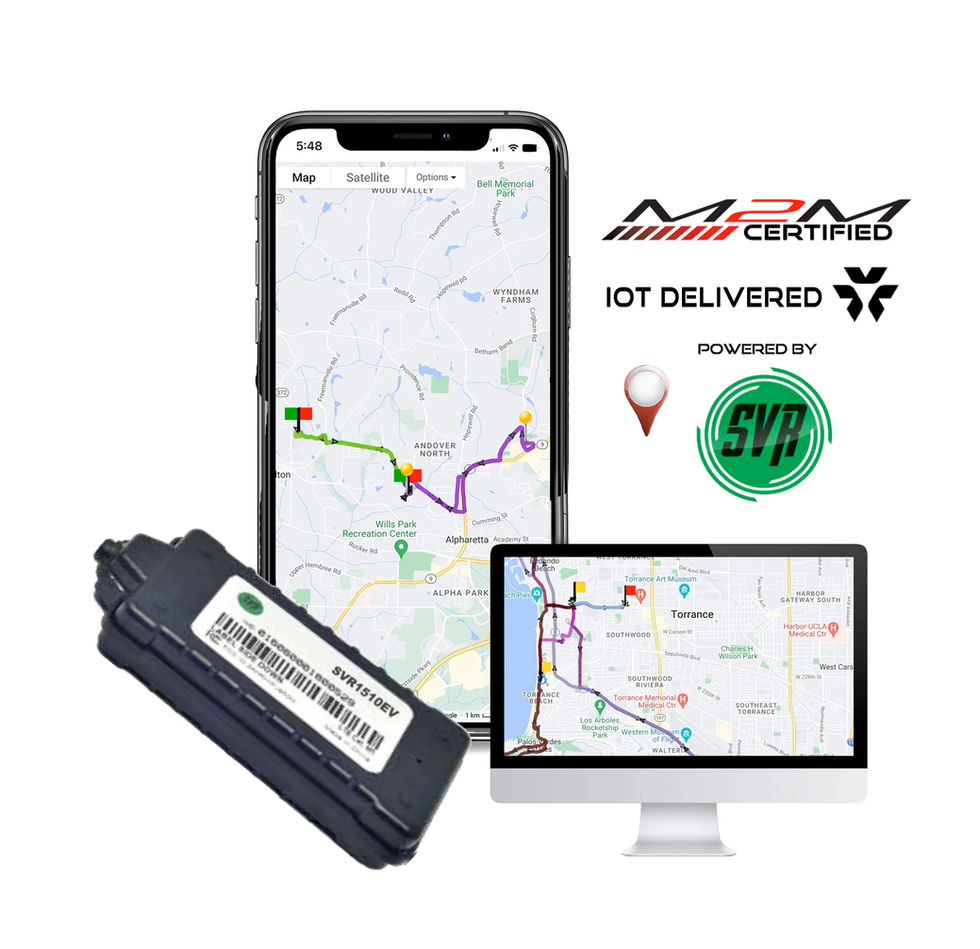

SVR1510EV Waterproof GPS Asset Tracker

CELLULAR CONNECTIVITY

LTE CAT-M1: Bands 1, 2, 3, 4, 5, 8, 12, 13, 18, 19, 25, 26, 28, 39

WIRELESS CARRIERS: AT&T, Verizon Wireless, Telus, Telcel, Movistar, AT&T Mexico

GNSS TECHNOLOGY

CONSTELLATION SUPPORT

Multi-constellation GNSS Precision receiver with concurrent reception of data from four GNSS satellites GPS, GLONASS, BeiDou, Galileo

TRACKING SENSITIVITY -167 dBm

ACQUISITION TIME 1s hot start, 28s cold start

LOCATION ACCURACY 1.5m CEP horizontal accuracy

LOCATION UPDATE RATE Up to 25Hz

AGPS CAPABLE Yes

ADVANCED FEATURES Advanced jamming and spoofing detection

INPUTS & OUTPUTS

INTERNAL SENSORS 16G mems 3-axis accelerometer, system temperature, & battery level

ANTENNAS Internal Cellular, Internal GPS

STATUS LEDS Cellular (Amber), GPS (Green)

AUDIBLE Buzzer

DIGITAL INPUTS 1 standard fixed bias low

DIGITAL OUTPUTS 1 standard open collector (200mA)

CONNECTORS 4-Pin Power/ 1/0 Connector

ELECTRICAL

OPERATING VOLTAGE 12/24 VDC Vehicle System 6-32 (Startup)

POWER CONSUMPTION Active- Average 21mA @12V
Sleep - Average <1.5mA @12V

BATTERY PACK

BATTERY CAPACITY  400 mAh

BATTERY TECHNOLOGY   Lithium-Ion

CHARGING TEMPERATURE  0°C to 45°C

ENVIRONMENTAL

TEMPERATURE   -40°C to 85°C (Connected to Primary Power)

OPERATING TEMP

-30°C to 80°C while connected to main power

-20°C to 60°C on backup battery

RELATIVE HUMIDITY Up to 90% non-condensing

IP RATING IP67

DROP TESTING 1 meter, 6 sides

VIBRATION J1455

PHYSICAL

DIMENSIONS 92mm x 50mm x 18mm

3.62in x 1.97in x 0.71in

WEIGHT 65g

REGULATORY APPROVALS/CERTIFICATION

FCC, IC, PTCRB, CE, ROHS

Specifications are subject to change. Please see your M2M Certified contact for more details.

All hardware orders are final with no refunds or returns unless determined to be defective out of the box. All defective out-of-box orders will be handled through our standard RMA process.

• Returned items must be in original factory packaging.
• All returns must be made within 30 days of delivery.
• Shipping charges will not be refunded.
• Returns without a Return Materials Authorization (RMA) number will not be accepted.
• Human caused failures will not be eligible for replacements.
• Improperly installed devices will not be eleigible for replacements
• Warranty only terms apply to defection hardware.

All product orders are fulfilled from our facility in San Diego, California and typically can be shipped the same day if the order is placed prior to 11am (PST)

All product hardware pricing and yearly subscription service/renewal pricing is subject to change periodically without notice, including additional processing fees/charges.

All SVR Tracking GPS product are uniquely designed for long lasting precision performance, expertly crafted by our in-house veteran wireless design teams. We stand by our top-quality GPS designs with a 3-Year Warranty which offers triple the protection of the industry’s standard 1-year coverage. We provide a premium product along with a premium service and DO NOT offer free multi-year service plans. The first year of service is included into the sales price of all SVR products with an annual service subscription renewal fee due at the end of the yearly service expiration period. The yearly service date timer begins when the device is installed into the vehicle or after 180 days from the initial purchase date. Once a devices yearly expiration period ends, the device will be placed into suspension until the services are renewed. If a device remains in suspension that exceeds 6 months, the device will be permanently deleted from the cellular network by the cellular carrier with which the service is provided and will not be able to be recovered. All product sales are final upon delivery with no refunds or returns with the exception of any out-of-box failures and/or any field failures determined to be defective under our strict Warranty/RMA troubleshooting evaluation policy with which a designated RMA# will be assigned and a like-for-like replacement will be processed if determined to be defective by our in-house. technical support staff, on a case-by-case basis.

WE ARE A PREMIUM GPS PRODUCT DESIGN HOUSE AND DO NOT COMPETE WITH THE CHEAPER QUALITY/LOWER PRICED GPS MARKETPLACE THAT OFFERS FREE MULTI-YEAR SERVICE PLANS TO ITS CUSTOMERS. OUR PRODUCTS ARE EXPERTLY DESIGNED FOR LONG LIFE & TOP QUALITY PRECISION PERFORMANCE AND OUR PRICES AND POLICIES ARE SPECIFICALLY STANDARDIZED FOR ALL SVR CUSTOMERS AND SET TO REFLECT THIS QUALITY & SERVICE STATEMENT.

THIS MEANS YOU ARE GETTING A PREMIUM HIGH-VALUE QUALITY PRODUCT & SERVICE AT A FAIR MARKET PRICE WITH SUBSTANTIAL PRICING DISCOUNTS APPLIED TO VOLUME ORDERS. ANNUAL RENEWAL PRICING IS NEGOTIABLE ON ORDERS OF 50 UNITS OR MORE.

NOTE: ALL HARDWARE/RENEWAL PRICING IS SUBJECT TO CHANGE PERIODICALLY, INCLUDING ADDITIONAL PROCESSING & HANDLING FEES.
