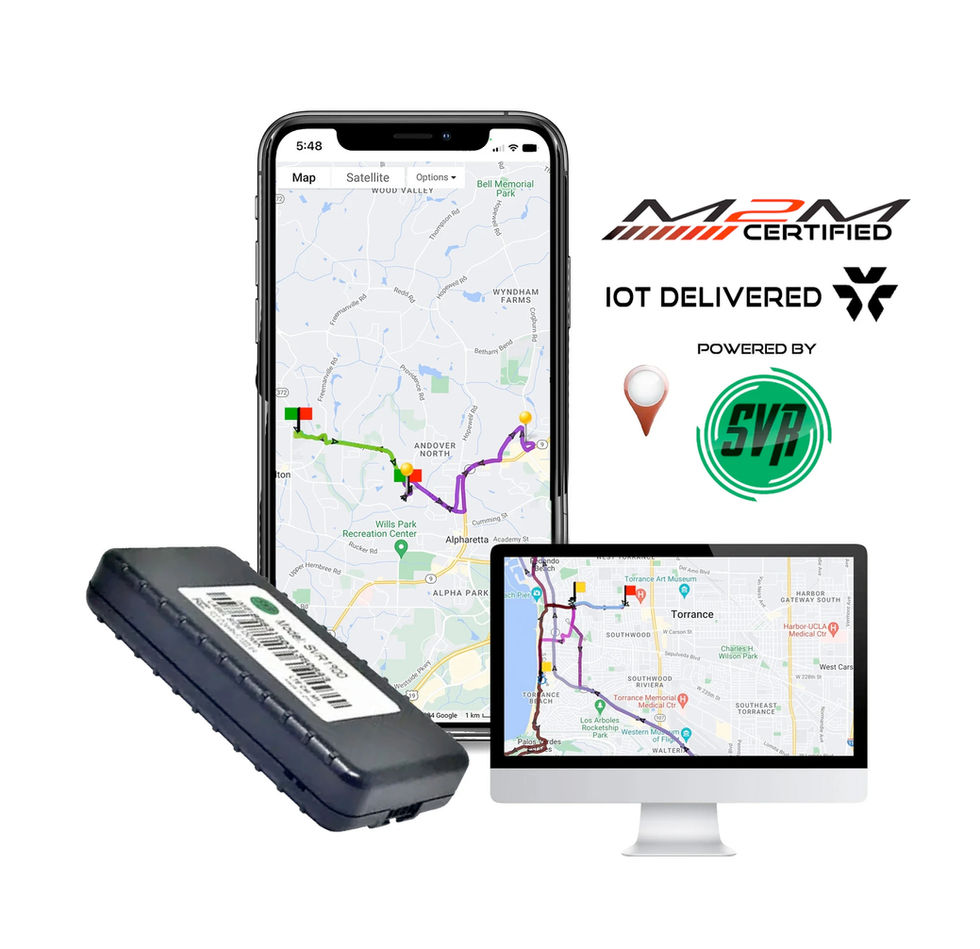

SVR1900 Best 4G/5G GPS tracker for Buy Here Pay Here Dealers

CELLULAR CONNECTIVITY

LTE CAT-M1
B1/B2/B3/B4/B5/B8/B12/B17/ B20/B25/B28/B66

GNSS TECHNOLOGY

CONSTELLATION SUPPORT: Multi-constellation GNSS precision receiver with concurrent reception of data from four GNSS satellites GPS, GLONASS, BeiDou, Galileo,

TRACKING SENSITIVTY: -167dBm

ACQUISITION TIME: 1s hot start, 28s cold start

LOCATION ACCURACY: 1.5m CEP horizontal accuracy

LOCATION UPDATE RATE: Up to 25Hz

AGPS CAPABLE Yes

ADVANCED FEATURES: Advanced jamming and spoofing detection

INPUTS & OUTPUTS

INTERNAL SENSORS ANTENNAS

EXTERNAL POWER EXTERNAL I/Os

CONNECTORS

3-axis IMU, System temperature, Battery level

Internal Cellular Internal GPS

Power-In (6-32 VDC)

1x Ignition Input 1x Digital Output 1x 12 VDC Input

4 Pin Connector

ELECTRICAL

OPERATING VOLTAGE  12/24 VDC Vehicle Systems 6-32 (Start-Up), Operating


POWER CONSUMPTION Sleep – Average XXmA @12V Active – Average XXmA @12V

BATTERY PACK

BATTERY CAPACITY  400 mAh

BATTERY TECHNOLOGY   Lithium-Ion

CHARGING TEMPERATURE  0°C to 45°C

ENVIRONMENTAL

TEMPERATURE   -40°C to 85°C (Connected to Primary Power)

HUMIDITY 85% RH @ 50°C non-condensing

SHOCK AND VIBRATION      SAE-J1455

PHYSICAL

DIMENSIONS   3.62” x 1.97” x 0.71” 92mm x 50mm x 18mm

WEIGHT    78g

INGRESS PROTECTION RATING    IP44

CLOUD / SERVICES

DEVICE MANAGEMENT PUI APIs

Monitor, manage, configure and troubleshoot device remotely

Quickly integrate data stream via PUI’s RESTful APIs

INDUSTRY CERTIFICATIONS

FCC, IC, PTCRB, CE, RoHS

Specifications are subject to change. Please see your M2M Certified contact for more details.
